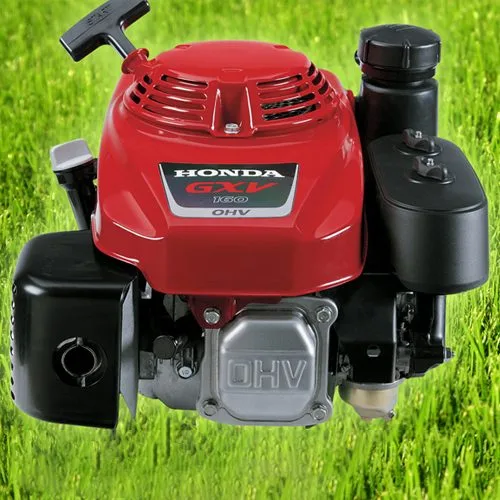

Honda GXV160 Engine

Professionals rely on the GXV160 to deliver reliable, easy starting, fuel efficient performance, day in and day out.

Shaft Spec

Clear

Call (08) 9248 2242

4 year domestic warranty from Honda Australia
Authorised Honda dealer — pick up in Malaga
We service what we sell — genuine parts on the shelf

HONDA GXV160 ENGINE

The GXV160 is the engine that powers Honda lawn mowers so you know it’ll work in practically any commercial lawn & garden equipment.

It’s also designed to power Forestry equipment, Construction/Industrial and Agricultural equipment.

To make sure that the GXV160 will work for you, click the “Compare Products” icon in the top right of this page.

Key Features

Type: 4-stroke, overhead valve, single-cylinder, horizontal shaft
Bore & Stroke: 68 x 45mm
Displacement: 163 cm3
Compression Ratio: 8.0:1
Net Power: 3.2kW (4.3hp) at 3600rpm
Continuous Rated Power: 2.0kW (2.7hp) at 3000rpm
Maximum Net Torque: 9.6Nm at 2500rpm
Ignition System: Transistorised magneto ignition
Starting System: Recoil
Cooling System: Forced-air
PTO Shaft Rotation: Counter-clockwise (from PTO side)
Fuel Consumption at Rated Power: 1.1L/h at 3600rpm
Recommended Fuel: Unleaded
Lubrication System: Forced Splash
Recommended Oil: 10W/30 API SG
Oil Capacity: 0.65L
Fuel Tank Capacity: 1.8L

Specifications

Dimensions: 420 x 365 x 357mm
Dry Weight: 14.3kg

Full specifications

Shaft Spec	2N1, MX3, MX4, MX5
